RADAR Program Using C is a graphical program written in c programming language which show how RADAR work to find distance.
Note: You are free to download, use, edit, update and rebuild the program and source codes downloaded from here, But Please don’t forget to give considerable credits to Dreamlover Technology and bestengineeringprojects.com if you do so.
Here you will find the tutorial to build a Simple prototype of a RADAR program. The software build will not be reliable and perfect enough to implement it in a real working environment, but this project is very helpful to build a basis and experience on Graphics Programming using C. And you can also certainly, Expand and enhance this program to make it implementable in real filed.
So, let’s get started!
If you already know enough about Graphics Library and API and can also program easily using C in Turbo C++ IDE, then you can directly download Turbo C++ IDE, install it, start a new project, copy the code from below and compile the project. As Turbo C++ has good collection of graphic library, so we did not any external library.
Preparation for program:
So to get started first of all download the latest version of Turbo C++, or Click here to download
Then, Copy the below code and paste in a text file and further change name and extension like radar.c.
Now copy the file radar.c and paste in the folder “C:/TurboC++/BIN” but it may vary according to the path where you install the Turbo C++.
Now open the Turbo C++ and click on:
File>open>radar.c
Now you can simply compile and execute it.
THE CODE

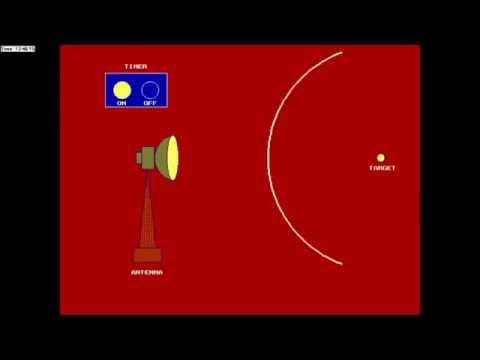

Output demo:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 |
/* Name: RADARProgram using C Copyright: http://bestengineeringprojects.com Author: BEP Date: 7/3/15 23:39 Description: */ // HEADER FILES USED #include<stdio.h> #include<conio.h> #include<graphics.h> #include<dos.h> // FUNCTIONS USED void principle(); void distance(); void direction(); void close(); void main() { int gd=DETECT,gm,x,y; initgraph(&gd,&gm,"c:\\turboc3\\bgi"); //Initializing Graphics Mode principle(); distance(); direction(); close(); getch(); closegraph(); restorecrtmode(); } void principle() { setbkcolor(BLUE); setcolor(WHITE); delay(2000); rectangle(80,300,180,360); setfillstyle(1,YELLOW); // TRANSMITTER floodfill(85,305,WHITE); setcolor(RED); // ARROW TO DUPLEXER settextstyle(11,0,2); outtextxy(87,325,"TRANSMITTER"); delay(1000); setcolor(WHITE); moveto(180,330); lineto(230,330); lineto(225,335); moveto(230,330); lineto(225,325); setfillstyle(1,CYAN); rectangle(230,300,310,360); // DUPLEXER moveto(270,300); lineto(270,360); floodfill(235,305,WHITE); // PART 1 setcolor(RED); outtextxy(238,325,"DUPLEXER"); delay(1000); setcolor(WHITE); moveto(250,300); // ARROW FROM DUPLEXER lineto(250,250); lineto(255,255); moveto(250,250); lineto(245,255); delay(1000); setcolor(RED); settextstyle(11,0,2); outtextxy(246,85,"ANTENNA"); setcolor(WHITE); rectangle(250,230,290,240); // ANTENNA rectangle(245,240,295,250); setfillstyle(9,BROWN); floodfill(257,232,WHITE); floodfill(247,243,WHITE); setfillstyle(1,LIGHTGRAY); ellipse(290,130,90,89,5,30); floodfill(290,130,WHITE); setfillstyle(9,BROWN); arc(300,130,105,255,31); floodfill(275,130,WHITE); setfillstyle(7,BROWN); moveto(260,230); lineto(270,140); moveto(280,230); lineto(270,140); floodfill(275,225,WHITE); rectangle(255,115,268,145); rectangle(250,120,255,140); setfillstyle(1,DARKGRAY); floodfill(258,117,WHITE); floodfill(253,123,WHITE); delay(1000); setcolor(WHITE); moveto(290,125); lineto(530,47); moveto(530,47); // ARROW TO TARGET lineto(525,52); moveto(530,47); lineto(524,44); setcolor(RED); settextstyle(11,0,2); outtextxy(515,25,"TARGET"); setcolor(WHITE); setfillstyle(1,LIGHTGREEN); // TARGET circle(540,50,10); floodfill(540,50,WHITE); delay(500); setfillstyle(1,RED); floodfill(540,50,WHITE); delay(500); setfillstyle(1,LIGHTGREEN); floodfill(540,50,WHITE); delay(500); delay(1000); moveto(534,57); // ARROW TO ANTENNA lineto(296,137); moveto(296,137); lineto(300,141); moveto(296,137); lineto(299,131); delay(1000); moveto(290,250); // ARROW TO DUPLEXER lineto(290,300); lineto(285,295); moveto(290,300); lineto(295,295); setfillstyle(1,CYAN); floodfill(275,305,WHITE); // PART 2 setcolor(RED); settextstyle(11,0,2); outtextxy(238,325,"DUPLEXER"); delay(1000); setcolor(WHITE); moveto(310,330); // ARROW TO RECEIVER lineto(360,330); lineto(355,325); moveto(360,330); lineto(355,335); setfillstyle(1,YELLOW); rectangle(360,300,440,360); // RECEIVER floodfill(365,305,WHITE); setcolor(RED); settextstyle(11,0,2); outtextxy(368,325,"RECEIVER"); delay(1000); setcolor(WHITE); moveto(440,330); // ARROW TO DISPLAY lineto(490,330); lineto(485,325); moveto(490,330); lineto(485,335); setfillstyle(1,CYAN); circle(540,330,50); // DISPLAY floodfill(540,330,WHITE); setcolor(RED); settextstyle(11,0,2); outtextxy(515,327,"DISPLAY"); delay(3000); cleardevice(); } void distance() { setbkcolor(RED); setcolor(BLUE); ellipse(200,200,90,89,10,40); // ANTENNA arc(210,200,105,255,42); rectangle(130,360,180,385); moveto(140,360); lineto(155,220); moveto(170,360); lineto(155,220); rectangle(145,180,167,220); rectangle(135,190,145,210); setcolor(WHITE); settextstyle(11,0,2); outtextxy(127,400,"ANTENNA"); setcolor(BLUE); setfillstyle(1,YELLOW); floodfill(200,200,BLUE); setfillstyle(9,BROWN); floodfill(135,365,BLUE); setfillstyle(7,BROWN); floodfill(155,340,BLUE); setfillstyle(9,LIGHTGREEN); floodfill(147,182,BLUE); floodfill(140,195,BLUE); setfillstyle(9,LIGHTGREEN); floodfill(180,200,BLUE); setcolor(WHITE); // TIMER circle(110,80,15); circle(160,80,15); rectangle(80,50,190,110); settextstyle(11,0,2); outtextxy(115,35,"TIMER"); setfillstyle(1,BLUE); floodfill(110,80,WHITE); floodfill(160,80,WHITE); floodfill(90,60,WHITE); outtextxy(102,100,"ON"); outtextxy(149,100,"OFF"); setcolor(BLUE); circle(570,200,7); // TARGET setfillstyle(1,YELLOW); floodfill(570,200,BLUE); setcolor(WHITE); outtextxy(550,215,"TARGET"); setfillstyle(1,YELLOW); floodfill(110,80,WHITE); setlinestyle(3,0,3); // RAY FROM ANTENNA TO TARGET setcolor(WHITE); circle(220,200,2); delay(250); setcolor(RED); circle(220,200,2); setcolor(WHITE); circle(240,200,2); delay(250); setcolor(RED); circle(240,200,2); setcolor(WHITE); circle(260,200,2); delay(250); setcolor(RED); circle(260,200,2); setcolor(WHITE); circle(280,200,2); delay(250); setcolor(RED); circle(280,200,2); setcolor(WHITE); circle(300,200,2); delay(250); setcolor(RED); circle(300,200,2); setcolor(WHITE); circle(320,200,2); delay(250); setcolor(RED); circle(320,200,2); setcolor(WHITE); circle(340,200,2); delay(250); setcolor(RED); circle(340,200,2); setcolor(WHITE); circle(360,200,2); delay(250); setcolor(RED); circle(360,200,2); setcolor(WHITE); circle(380,200,2); delay(250); setcolor(RED); circle(380,200,2); setcolor(WHITE); circle(400,200,2); delay(250); setcolor(RED); circle(400,200,2); setcolor(WHITE); circle(420,200,2); delay(250); setcolor(RED); circle(420,200,2); setcolor(WHITE); circle(440,200,2); delay(250); setcolor(RED); circle(440,200,2); setcolor(WHITE); circle(460,200,2); delay(250); setcolor(RED); circle(460,200,2); setcolor(WHITE); circle(480,200,2); delay(250); setcolor(RED); circle(480,200,2); setcolor(WHITE); circle(500,200,2); delay(250); setcolor(RED); circle(500,200,2); setcolor(WHITE); circle(520,200,2); delay(250); setcolor(RED); circle(520,200,2); setcolor(WHITE); circle(540,200,2); delay(250); setcolor(RED); circle(540,200,2); setcolor(WHITE); circle(558,200,2); delay(250); setcolor(RED); circle(558,200,2); setcolor(WHITE); setlinestyle(3,0,3); circle(570,200,50); delay(500); setcolor(RED); circle(570,200,50); setcolor(WHITE); circle(570,200,100); delay(500); setcolor(RED); circle(570,200,100); setcolor(WHITE); circle(570,200,150); delay(500); setcolor(RED); circle(570,200,150); setcolor(WHITE); arc(570,200,110,250,200); delay(500); setcolor(RED); arc(570,200,110,250,200); setcolor(WHITE); arc(570,200,120,240,250); delay(500); setcolor(RED); arc(570,200,120,240,250); setcolor(WHITE); arc(570,200,135,230,300); delay(500); setcolor(RED); arc(570,200,135,230,300); setcolor(WHITE); arc(573,200,145,220,360); delay(250); setcolor(RED); arc(573,200,145,220,360); setfillstyle(1,BLUE); floodfill(110,80,WHITE); setfillstyle(1,YELLOW); floodfill(160,80,WHITE); delay(3000); cleardevice(); } void direction() { setbkcolor(BLACK); setlinestyle(0,1,2); setcolor(WHITE); rectangle(95,400,165,415); // ANTENNA moveto(110,400); lineto(130,198); moveto(150,400); lineto(130,198); rectangle(80,415,180,430); setfillstyle(7,BROWN); floodfill(130,390,WHITE); setfillstyle(9,BROWN); floodfill(96,401,WHITE); floodfill(81,416,WHITE); rectangle(98,158,128,208); rectangle(88,168,98,198); ellipse(173,180,90,89,10,60); arc(193,180,107,253,64); setfillstyle(9,BROWN); floodfill(100,160,WHITE); floodfill(90,170,WHITE); setfillstyle(1,YELLOW); floodfill(173,180,WHITE); setfillstyle(9,LIGHTGREEN); floodfill(150,180,WHITE); settextstyle(7,0,4); setcolor(YELLOW); outtextxy(70,70,"Antenna"); delay(2000); setcolor(WHITE); ellipse(363,180,270,90,50,30); // RADIATION PATTERN moveto(183,180); lineto(363,150); moveto(183,180); lineto(363,210); setfillstyle(1,BLUE); floodfill(363,180,WHITE); delay(1000); setcolor(YELLOW); settextstyle(11,0,2); outtextxy(225,177,"Radiation Pattern"); delay(2000); setcolor(WHITE); setfillstyle(1,RED); circle(395,199,3); floodfill(395,199,WHITE); circle(340,156,3); floodfill(340,156,WHITE); setcolor(YELLOW); moveto(345,164); lineto(352,164); lineto(352,158); lineto(359,158); lineto(359,164); lineto(366,164); moveto(397,211); lineto(404,211); lineto(404,205); lineto(411,205); lineto(411,211); lineto(418,211); setcolor(YELLOW); settextstyle(11,0,2); outtextxy(340,230,"LOW STRENGTH ECHO"); outtextxy(270,135,"LOW STRENGTH ECHO"); delay(2000); setcolor(WHITE); setfillstyle(1,RED); circle(368,178,3); floodfill(368,178,WHITE); setcolor(YELLOW); moveto(375,185); lineto(382,185); lineto(382,169); lineto(389,169); lineto(389,185); lineto(396,185); outtextxy(425,175,"HIGH STRENGTH ECHO"); delay(3000); cleardevice(); } void close() { setbkcolor(YELLOW); setcolor(BLUE); settextstyle(7,HORIZ_DIR,4); outtextxy(160,180,"!! www.bestengineeringprojects.com !!"); outtextxy(120,280," Press any key to EXIT"); } |
