Analogue Frequency Meter with Over-range Indicator

The versatile IC timer 555 has yet another application as an analog frequency meter. By making use of a 556 integrated circuit, which has two 555 timers in a single package, an over-range indicator can be economically added to the meter.

Circuit Description of Analogue Frequency Meter with Over-range Indicator

When this meter is switched to the 50Hz range, any input frequency from near DC to 50 Hz produces a correct panel meter reading, i.e. a frequency of 42 Hz produces a meter reading of 42 microamperes. However, the analog frequency meter reading is correct when the input frequency exceeds 50 Hz, and therefore an LED over-range indicator flashes. If the range switch is then moved to a setting higher than the frequency, the LED stops flashing and the analog frequency meter again indicates correctly. For example, a 300 Hz signal could be measured on the 500Hz range, where the meter, would show 30 microamperes.

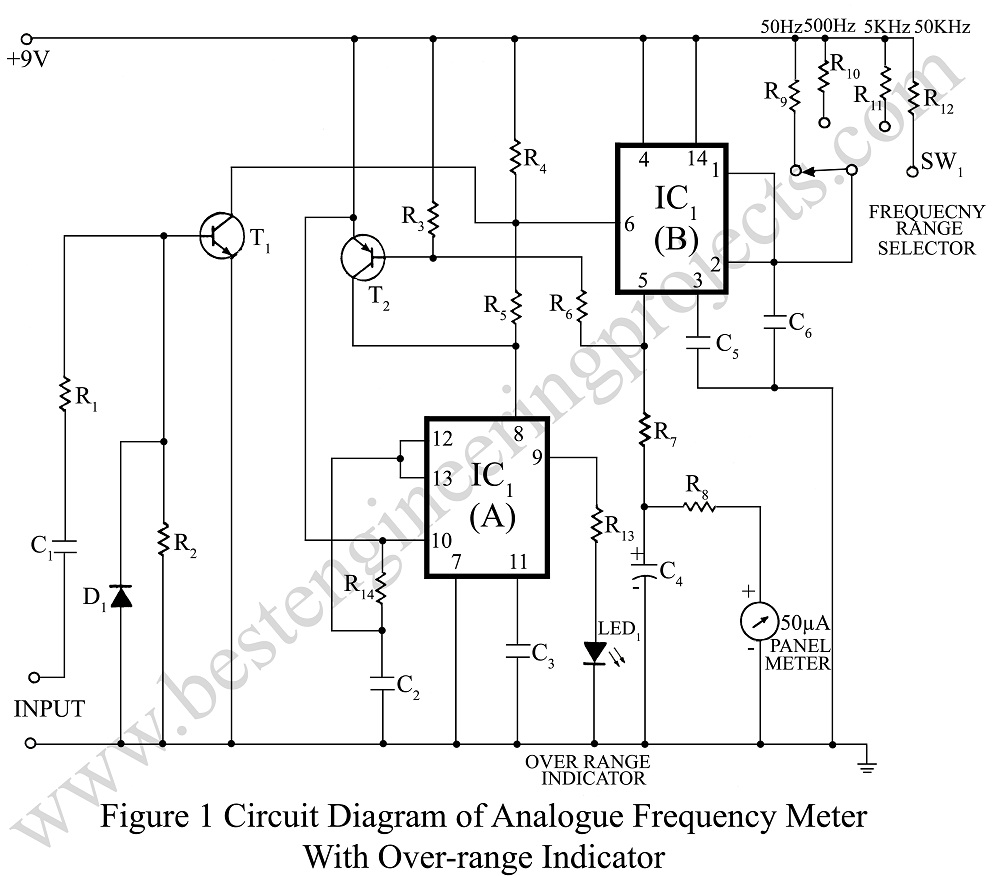

circuit diagram of analogue frequency meter with over range indicator

Here the input signal in the analog frequency meter is a rectangular pulse train; the pulses are differentiated to produce the negative spikes that are needed to trigger the timer. For a sine wave or sawtooth input signal, a Schmitt trigger might be used to generate the negative impulses for the input signal in an analog frequency meter.

PARTS LIST OF ANALOGUE FREQUENCY METER

Resistor (all ¼-watt, ± 5% Carbon)

R1, R4, R12 = 1 KΩ

R2, R6, R11 = 10 KΩ

R3 = 4.7 KΩ

R5 = 1.5 KΩ

R7 = 47 KΩ

R8 = 180 KΩ

R9, R14 = 1 MΩ

R10 = 100 KΩ

R13 = 220 Ω

Capacitors

C1 = 15 pF (ceramic capacitor)

C2, C3, C5, C6 = 0.01 µF (ceramic capacitor)

C4 = 10 µF (electrolytic capacitor)

Semiconductors

IC1 (A + B) = NE556

T1 = 2N2222

T2 = 2N2955

D1 = 1N4148

LED1 = RED LED (over range indicator)

Miscellaneous

SW1 = Rotary switch

Meter = 50 µA Panel Meter
